EcoReve®

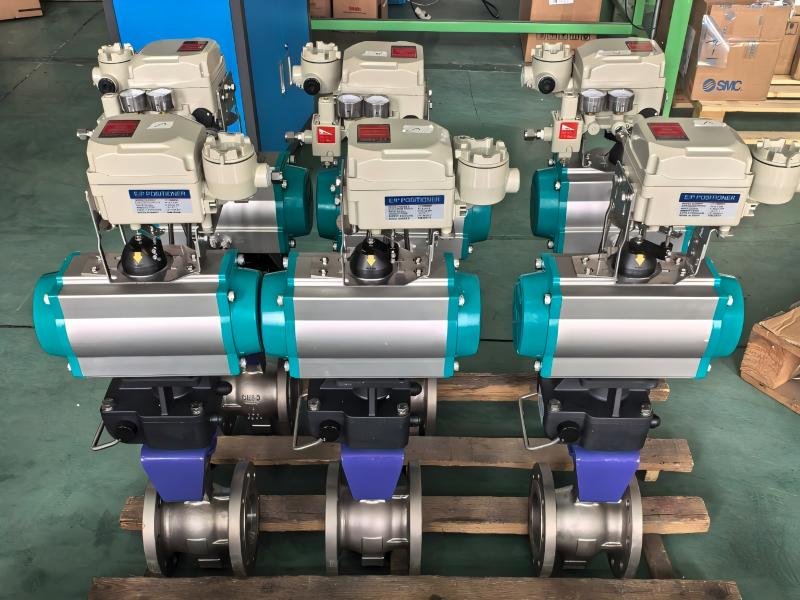

Specially designed for industrial automation systems, it achieves precise flow regulation and rapid on-off control of media containing fibers, particles, or high viscosity through pneumatic drive, and is widely used in fields such as petroleum, chemical, papermaking, and environmental protection.
Advantages:
1. Extremely high adjustment accuracy: The V-shaped notch design provides approximately equal percentage flow characteristics, with an adjustable ratio of up to 300:1, enabling precise proportional control within the range of 0-90 °.
2. Strong anti blocking and self-cleaning performance: The V-shaped incision generates strong shear force when the valve seat rotates, which can cut off fibers, particles and impurities, avoid medium adhesion and valve jamming, and adapt to dirty media.
3. Reliable sealing performance: Adopting metal hard seal or PTFE soft seal structure, the leakage rate is extremely low, meeting the requirements of high pressure, high temperature, and zero leakage and other harsh working conditions.
4. Low flow resistance and energy consumption: When fully opened, the flow channel is unobstructed and the fluid resistance coefficient is small, which can significantly reduce pipeline pressure loss and improve system delivery efficiency.
5. Fast response speed: Equipped with pneumatic actuators, the full stroke response time only takes 0.5-3 seconds, supporting fast opening and closing and emergency cut-off, and adapting to the rhythm of automated control.
6. Wide applicability: It has a wide range of temperature and pressure resistance, and can handle various media such as water, steam, oil, acid and alkali solutions, pulp, mud, etc.
7. Easy installation and maintenance: The clamp/flange connection structure is compact, and the installation space is small; Modular design facilitates disassembly and assembly, and seals can be replaced separately, reducing maintenance costs.
Adaptive automation system: It can be paired with accessories such as locators and solenoid valves to receive 4-20mA signals for remote automatic control. It supports single/double acting modes to ensure production safety.
